Rigs

Drillstand for up to Ø600 mm maximum drilling capacity (with extension spacers).Ideal for large diameter drilling applications where maximum rigidity is required.

• Quick-release cam-lock motor mounting plate included
• Precision roller guidance with fine adjustment
• Fast and slow ratio crank spindles on both sides
• Tilt capability with scale
• Use anchoring plate and fixing kit  for fixing the drill stand with a drop in anchor
• May use clamp bracket to adapt for use with a handheld drilling motor
• Use extension spacers for core drill diameters over 500 mm

Drill stand for up to Ø800 mm maximum drilling capacity (with extension spacers). Ideal for large diameter drilling applications where maximum rigidity is required.

• Precision roller guidance with fine adjustment
• Fast and slow ratio crank spindles:
• Tilt capability with scale
• Crank handle can be used as a wrench
• Dovetail motor mounting plate included
• Use anchoring plate and fixing kit  for fixing the drill stand with a drop in anchor
• Use clamp bracket to adapt for use with a handheld drilling motor
• Use extension spacers for core drill diameters over 350 mm

Drill Rig for up to Ø500 mm maximum drilling capacity (with extension spacers). Features 2 crank spindles: 1 with reduction gearing for increased leverage, and 1 with standard gearing for faster movement.

• Precision roller guidance with fine adjustment
• Fast and slow ratio crank spindles
• Tilt capability with scale
• Crank handle can be used as a wrench
• Dovetail motor mounting plate included
• Use anchoring plate and fixing kit  for fixing the drill stand with a drop in anchor
• Or use vacuum pump and vacuum base (anchoring plate still required) for fixing drill stand without anchor.*
• Use clamp bracket to adapt for use with a handheld drilling motor
• Use extension spacers for core drill diameters over 350 mm

Ideal for most typical applications with rig-mounted motors up to Ø350 mm.

• Precision roller guidance with fine adjustment
• Tilt capability with scale
• Crank handle can be used as a wrench
• Dovetail motor mounting plate included
• Use anchoring plate and fixing kit for fixing the drill stand with a drop in anchor
• Or use vacuum pump and vacuum base (anchoring plate still required) for fixing drill stand without anchor*
• Use clamp bracket to adapt for use with a handheld drilling motor

Ideal for most typical applications with rig-mounted motors up to Ø250 mm.

• Precision roller guidance with fine adjustment
• Tilt capability with scale
• Crank handle can be used as a wrench
• Dovetail motor mounting plate included
• Use anchoring plate and fixing kit for fixing the drill stand with a drop in anchor
• Or use vacuum pump and vacuum base (anchoring plate still required) for fixing drill stand without anchor*
• Use clamp bracket to adapt for use with a handheld drilling motor

A versatile drill stand for hand-held drilling motors. Drilling capacity up to Ø202 mm, with a full selection of optional accessories.

• Quick-release clamp bracket
• Precision roller guidance with fine adjustment
• Tilt capability with scale

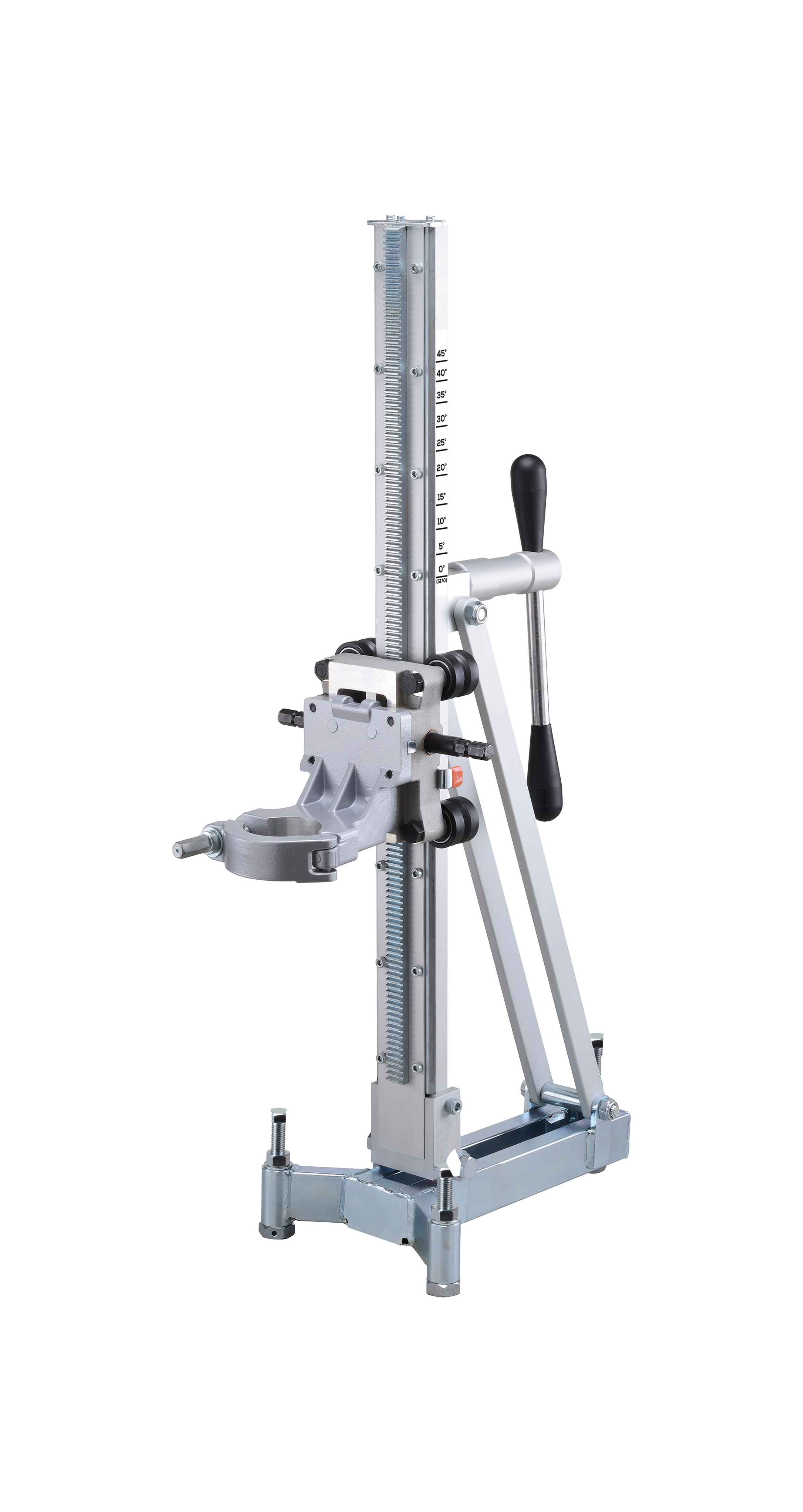

A high-stability drill stand for hand-held drilling motors. Drilling capacity up to Ø170 mm.

• Precision roller guidance with fine adjustment
• Tilt capability with scale
• Crank handle doubles as a wrench
• 60 mm clamp bracket

Anchoring

• Use fixing kit for fixing the drill stand with a drop in anchor or use vacuum pump and vacuum base for fixing drill stand without
