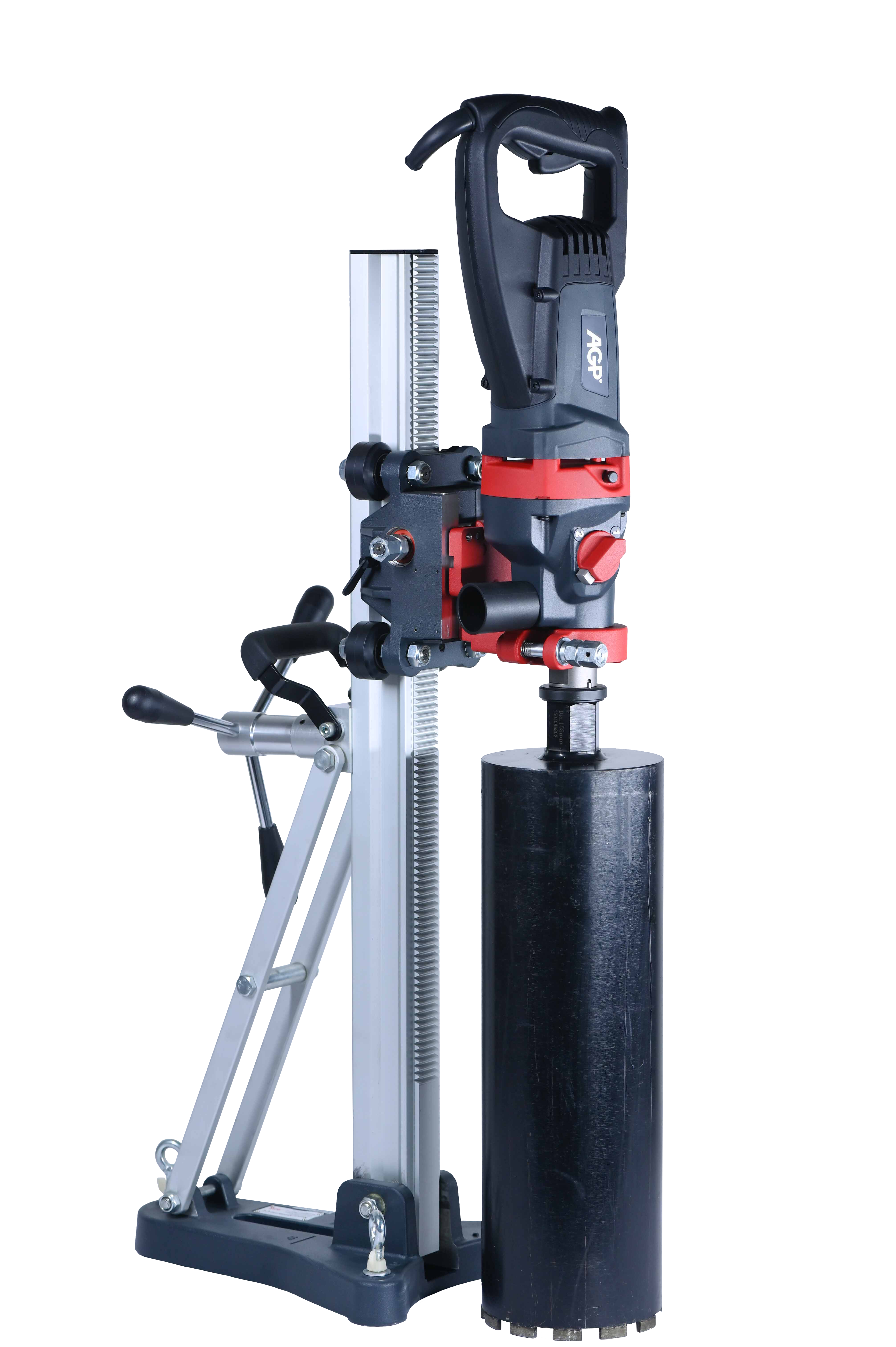

Diamond Core Drilling Motor

DD160

【available from AGP Europe】

A 2-speed 2200 W dry drilling motor for drilling up to 162 mm in reinforced concrete and 262 mm in brick. Excellent for overhead drilling, operation in sub-zero temperatures and any situation where water cannot be used. Throughthespindle dust extraction and switchable soft percussion allow optimal dry drilling performance.

  • 2-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start,thermal protection, and overload protection.
  • Highly visible LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • Switchable soft percussion for optimized dry drilling.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Soft-Grip Side Handle in-line with spindlecenterline for best control.
  • Built in horizontal level for precision.
Power | AGP Power Tools
Power:
2200 W (230 - 240 V) | 2000 W (220 V) | 1700 W (110 - 120 V)
Capacity | AGP Power Tools
Max. Capacity:
162 mm (6 1/2") (Reinforced Concrete) | 262 mm (10") (Brick)
Type | AGP Power Tools
Type:
Dry drilling (reinforced concrete) | Dry drilling (brick)
dry | AGP Power Tools
Dry Capacity:
weight | AGP Power Tools
Weight:
Specifications
  • Model
  • DD160
  • Power Input
  • 2200 W (230-240 V), 2000 W (220 V), 1700 W (110-120 V)
  • Voltage, Frequency
  • 230-240 V~ 50-60 Hz, 220 V~ 50-60 Hz or 110-120 V~ 50-60 Hz
  • No Load (Rated Load) Speeds
  • Gear 1 | 1250 (750) /min
    Gear 2 | 2600 (1500) /min
  • Percussion Frequency, No Load (Rated Load)
  • Speed 1 | 25,000 (15,000) b/min
    Speed 2 | 50,000 (32,500) b/min
  • Capacity-Dry (reinforced concrete)
  • 162 mm (6 1/2")
  • Capacity-Dry (Brick)
  • 262 mm (10")
  • Soft Start / Overload Protection
  • With
  • Gear Oil Type
  • 80W-90
  • Gear Oil Capacity
  • 200 ml
  • Spindle Thread
  • 1-1/4” UNC male & 1/2” BSP female
  • Insulation Class
  • Class II
  • Dimensions (LxWxH)
  • 550 mm x 130 mm x 160 mm
  • Weight
  • 6.0 kg (13.2 lb)
  • Exploded View & Parts List
  • Download
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Blow Molded Case
  • Side Handle
  • M32 Wrench

Optional    Accessories

  • Centering Pilot for L 300 mm Bits
