Concrete Grinder

G180

【available from AGP Europe】

180 mm high endurance concrete grinder with excellent dust control. Variable constant speed allows versatility and the LED Load Indicator allows the operator to work at peak efficiency.  Angle style design for general concrete grinding tasks.

  • Constant speed is maintained regardless of load for an even finish.
  • Variable speed for different applications.
  • LED Indicator for optimizing grinding efficiency with overload and overheat warning.
  • Waterproof and dustproof Hall-effect switch includes anti-restart function to protect operator in the event of interrupted power supply.
  • Adjustable ergonomic front handle allows clearance for edge grinding.
  • Effective dust control skirt with spring suspension and replaceable brush.
  • Tool-free sliding cover for edge grinding.
Power | AGP Power Tools
Power:
2400 W (220-240 V)|2100 W (110-120 V)
Capacity | AGP Power Tools
Max. Capacity:
180 mm
Type | AGP Power Tools
Type:
Angle drive
dry | AGP Power Tools
Dry Capacity:
weight | AGP Power Tools
Weight:

Ergnomic Front Handle

Adjustable ergonomic front handle allows clearance for edge grinding.

Half-Moon Door

Half-Moon Door for grinding up to the edge.The door and dust skirt brushes are fully replaceable.

Spring Suspension

Outstanding dust control is achieved with the dust skirt with brush and spring suspension. It automatically compensates for irregular height surfaces, keeping the tool level to the work surface.

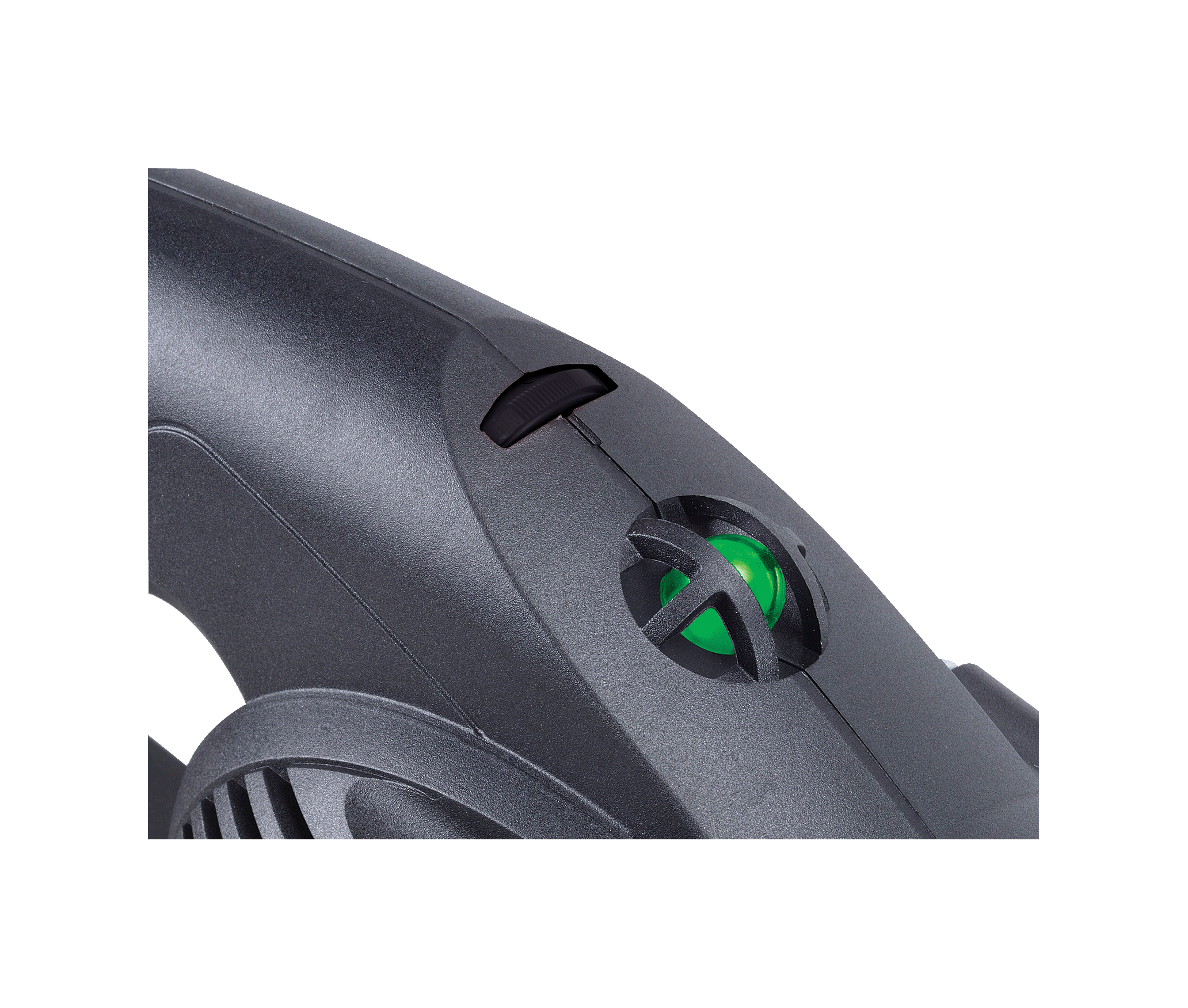

LED Indicator

LED Indicator for optimizing grinding efficiency with overload and overheat warning.

Specifications
  • Model
  • G180
  • Power Input
  • 2400 W (220-240 V), 2100 W (110-220 V)
  • Voltage, Frequency
  • 220-240 V~ 50-60 Hz, 110-120 V~ 50-60 Hz
  • No Load Speeds
  • 3500 - 5800 /min
  • Wheel Diameter
  • 180 mm (7")
  • Soft Start & Overload Protection
  • With
  • Arbor
  • 22.23 mm (7/8")
  • Spindle
  • M14 or 5/8-11 (Specify when ordering)
  • Dimensions (L x W x H)
  • 540 mm x 210 mm x 195 mm
  • Weight
  • 5.6 kg (12.3 lb)
  • Exploded View & Parts List
  • Download
  • Video
  • 3D Features
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Lock Nut Wrench
  • Face Spanner Wrench

Optional Accessories

  • Various Grits of Diamond Cup Wheel
