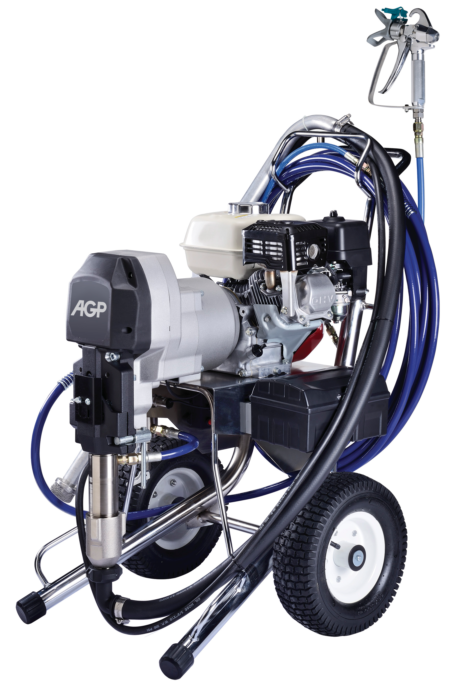

Engine Airless Paint Sprayer

PE048

Heavy-duty airless sprayer with petrol (gasoline) engine and digital electronic pressure control for up to 0.048" tips. Multiple gun capability. Excellent for heavy materials and long hose runs.

  • 6.5 HP Honda Engine for independent operation and plentiful power.
  • Electronic Pressure Control with LCD display for Pressure, Working Hours, and Diagnostic Messages.
  • Control System includes Auto Stop Function when paint is used up.
  • High-Durability Electromechanical Clutch.
  • Hours Display Button. (on back of control box)
  • High performance piston pump with long-life packings.
  • Built-In Tool Box for holding, tools, extra tips, and filter.
  • Quick-Release Pump for easy maintenance.
  • Large pneumatic wheels and sturdy frame.
  • Flexible Suction Hose.
Power:
6.5 HP
Max. Capacity:
Max. Tip Size (1 Gun) : 0.048" | Max. Tip Size (2 Guns) : 0.035" | Max. Tip Size (3 Guns) : 0.027" | Max. Tip Size (4 Guns) : 0.023"
Type:
Honda GX200 | Four Stroke Petrol (Gasoline)
Dry Capacity:
Weight:
Specifications
  • Model
  • PE048
  • Engine Type
  • Honda GX200, Four Stroke Petrol (Gasoline)
  • Power Rating
  • 6.5HP
  • Max. Tip Size (1 Gun)
  • 0.048"
  • Max. Tip Size (2 Guns)
  • 0.035"
  • Max. Tip Size (3 Guns)
  • 0.027"
  • Max. Tip Size (4 Guns)
  • 0.023"
  • Minimum Tip Size
  • 0.023"
  • Max. Flow
  • 8.3 l/min (2.2 gpm)
  • Max. Pressure
  • 227 bar (3,300 psi)
  • Pressure Control
  • Digital
  • Max. Hose Length
  • 100 m ( 300' )
  • Dimensions (LxWxH)
  • 670 x 580 x 810 mm
  • Weight
  • 74.5kg (164.2 lb)
  • Exploded View & Parts List
  • Download
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Gun With Tip Guard and Tip (0.035")
  • Inlet strainer 8 Mesh
  • Pump Filter W/ One Each 60 &100 Mesh
  • Special Multi-Purpose Wrench
  • Throat Seal Oil (100 ml Squeeze Bottle)
  • Tommy Bar

Optional Accessories

  • Pump Filter w/ 30 Mesh
